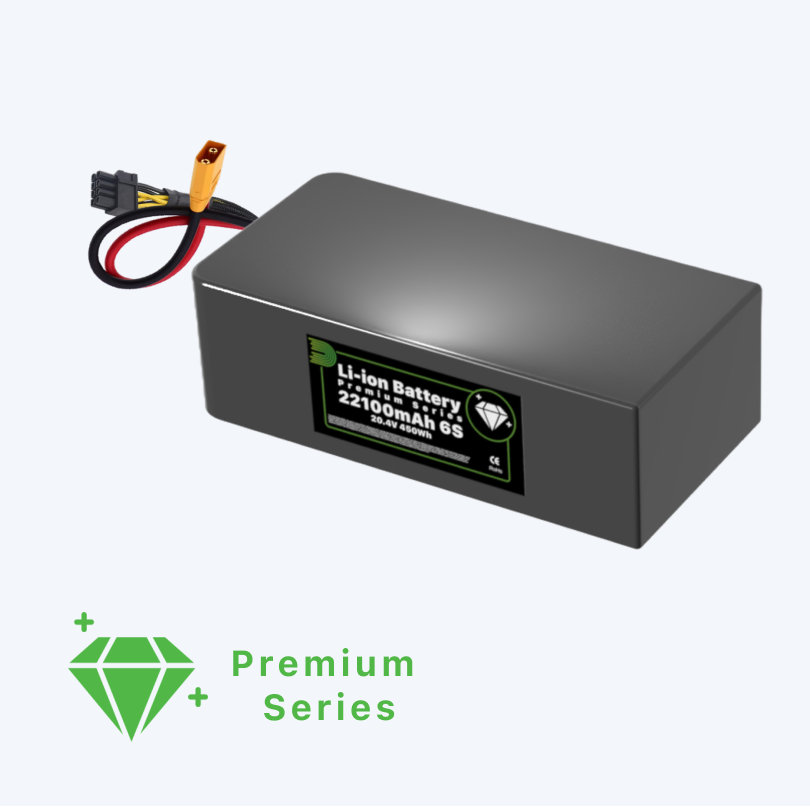

Premium High Power Amprius SA08 Li Pouch Battery 22100mAh 20.4V 108A Max

Built for aerospace, tactical UAVs, and advanced robotics, the Premium High Power Amprius SA08 battery delivers exceptional energy in an ultra-light format. With a nominal voltage of 20.4V and a 22.1Ah capacity, it harnesses cutting-edge Amprius SA08 pouch cells with industry-leading 360 Wh/kg energy density. Ideal for power-dense platforms requiring a compact, high-drain energy source. This configuration omits internal BMS, enabling full customization for integrators using smart external systems.

High energy density: 453 Wh capacity with Amprius cells delivering up to 360 Wh/kg
Extreme discharge capability: Up to 108A continuous and 172.8A peak (30s)
External BMS integration: Flexible use with smart external BMS or smart charger setups
Compact and lightweight: 1.5 kg in a slim pouch cell format for embedded UAVs and robotics
Proven cell tech: Uses Amprius SA08, compliant with UN38.3 and IEC62133 standards

Datasheet

German Engineering Since 2011

Proudly manufacturing high-quality lithium-ion batteries in Germany, combining precision and innovation for every solution.

Tailored Customization Options

Design your ideal battery with options for unique form factors, setups, and advanced BMS configurations to suit your needs.

Advanced BMS with Connectivity

Leverage our proprietary BMS modules featuring advanced connectivity and performance optimization for seamless integration.

Fast Turnaround for Custom Solutions

From the first consultation to production, we deliver custom battery packs in just 4–6 weeks, ensuring your projects stay on track.

Technical Details

TN6S1P-SA08

Electrical Specifications

Cell Model: Amprius SA08
Cell Configuration: 6S1P
Nominal Voltage: 20.4 V
Nominal Capacity: 11.05 Ah
Energy: 226.5 Wh
Charge Voltage: 25.2 V
Cut-off Voltage: 15 V
Energy Density: 360 Wh/kg

Current Parameters

Max Continuous Discharge Current: 54 A (5C)
Max Pulse Discharge Current (≤30s): 86.4 A (8C)
Max Charge Current: 32.4 A (3C)

Cell Model

Amprius SA08

Physical Specifications

Dimensions (L × W × H): 42 × 54 × 170 mm
Weight: 0.75 kg
Enclosure Material: PVC Shrink Wrap

TN6S2P-SA08

Electrical Specifications

Cell Model: Amprius SA08
Cell Configuration: 6S2P
Nominal Voltage: 20.4 V
Nominal Capacity: 22.1 Ah
Energy: 453 Wh
Charge Voltage: 25.2 V
Cut-off Voltage: 15 V
Energy Density: 360 Wh/kg

Current Parameters

Max Continuous Discharge Current: 108 A (5C)
Max Pulse Discharge Current (≤30s): 172.8 A (8C)
Max Charge Current: 64.8 A (3C)

Physical Specifications

Dimensions (L × W × H): 84 × 54 × 170 mm
Weight: 1.5 kg
Enclosure Material: PVC Shrink Wrap

Extra Details

Environmental Specifications

Operating Temperature: Charge 0°C to 60°C / Discharge –20°C to 60°C
Storage Temperature: Short-term –20°C to 45°C / Long-term 0°C to 25°C
Humidity: ≤85% RH

Performance Specifications

Cycle Life: ~300 cycles @ 100% DOD / ~700 cycles @ 70% DOD
Certifications: CE, UN38.3, RoHS, IEC 62133
Warranty: 12 months

Protection Features

Overcharge Protection
Over-discharge Protection
Overcurrent Protection
Short Circuit Protection
Temperature Monitoring

Communication Interfaces (with Smart BMS)

CANBUS, RS485, UART

Warranty

Duration: 12 months
