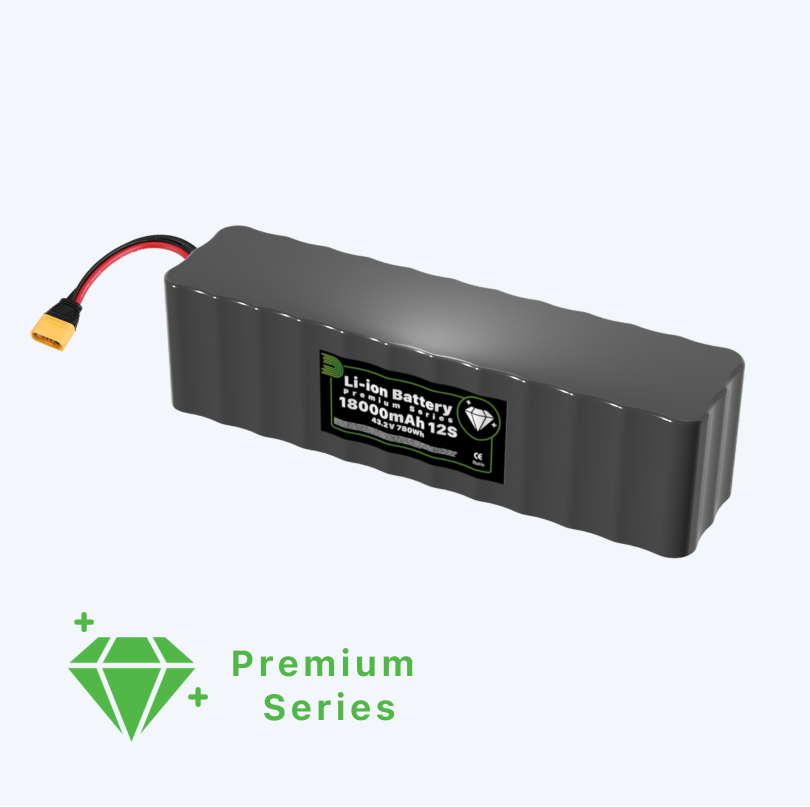

Premium High Power Reliance RS60 Li-Ion Battery 18000mAh 43.2V 150A Max (TN12S3P-RS60)

Designed for higher-voltage UAV systems, electric robotics, and industrial platforms, this premium high power Li-ion battery in a 12S3P configuration delivers 778Wh at 43.2V using Reliance RS60 cells. With 18Ah capacity and 302 Wh/kg energy density, it provides 150A continuous and 240A pulse discharge. Optional Smart BMS supports advanced integration and real-time monitoring.

  • High-Voltage Energy: 778Wh at 43.2V with 302 Wh/kg using Reliance RS60 cells
  • Reliable Discharge: 150A continuous and 240A peak pulse
  • Efficient Charging: Supports up to 36A max charge current (2C)
  • Smart BMS Compatibility: CANBUS, RS485, and UART interfaces
  • Full Protection Suite: Overcharge, over-discharge, overcurrent, and temperature protection

German Engineering Since 2011

Proudly manufacturing high-quality lithium-ion batteries in Germany, combining precision and innovation for every solution.

Tailored Customization Options

Design your ideal battery with options for unique form factors, setups, and advanced BMS configurations to suit your needs.

Advanced BMS with Connectivity

Leverage our proprietary BMS modules featuring advanced connectivity and performance optimization for seamless integration.

Fast Turnaround for Custom Solutions

From the first consultation to production, we deliver custom battery packs in just 4–6 weeks, ensuring your projects stay on track.

Technical Details

TN12S3P-RS60-01

Electrical Specifications

  • Cell Model: Reliance INR21700-RS60
  • Cell Configuration: 12S3P
  • Nominal Voltage: 43.2 V
  • Nominal Capacity: 18 Ah
  • Energy: 778 Wh
  • Charge Voltage: 50.4 V
  • Cut-off Voltage: 30 V
  • Energy Density: 302 Wh/kg

Current Parameters

  • Max Continuous Discharge Current: 150 A (8.3C)
  • Max Pulse Discharge Current (≤30s): 240 A (13.3C)
  • Max Charge Current: 36 A (2C)

Physical Specifications

  • Dimensions (L × W × H): 75 × 80 × 300 mm
  • Weight: 2.7 kg
  • Enclosure Material: PVC Shrink Wrap

TN12S6P-RS60-01

Electrical Specifications

  • Cell Model: Reliance INR21700-RS60
  • Cell Configuration: 12S6P
  • Nominal Voltage: 43.2 V
  • Nominal Capacity: 36 Ah
  • Energy: 1,555 Wh
  • Charge Voltage: 50.4 V
  • Cut-off Voltage: 30 V
  • Energy Density: 302 Wh/kg

Current Parameters

  • Max Continuous Discharge Current: 300 A (8.3C)
  • Max Pulse Discharge Current (≤30s): 480 A (13.3C)
  • Max Charge Current: 72 A (2C)

Physical Specifications

  • Dimensions (L × W × H): 150 × 80 × 300 mm
  • Weight: 5.4 kg
  • Enclosure Material: PVC Shrink Wrap

Extra Details

Environmental Specifications

  • Operating Temperature:
    • Charge: -20°C to 60°C
    • Discharge: -40°C to 80°C
  • Storage Temperature:
    • Short-term (<1 month): -20°C to 45°C
    • Long-term (>1 month): 0°C to 25°C
  • Humidity: ≤85% RH

Performance Specifications

  • Cycle Life: 500–700 cycles to ~65–70% capacity (25°C)

Protection Features

  • Overcharge Protection
  • Over-discharge Protection
  • Overcurrent Protection
  • Short Circuit Protection
  • Temperature Monitoring

Communication Interfaces (with Smart BMS)

  • CANBUS, RS485, UART

Warranty

  • Duration: 12 months
